Product Description

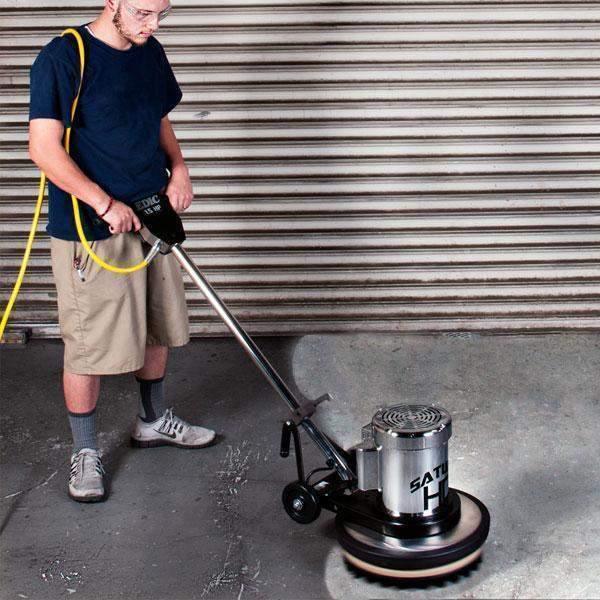

The rugged HD floor machines are ideal for sanding, screening, stone care and concrete work. Hi-torque, totally enclosed, fan-cooled motor handles dust, moisture and other harsh conditions

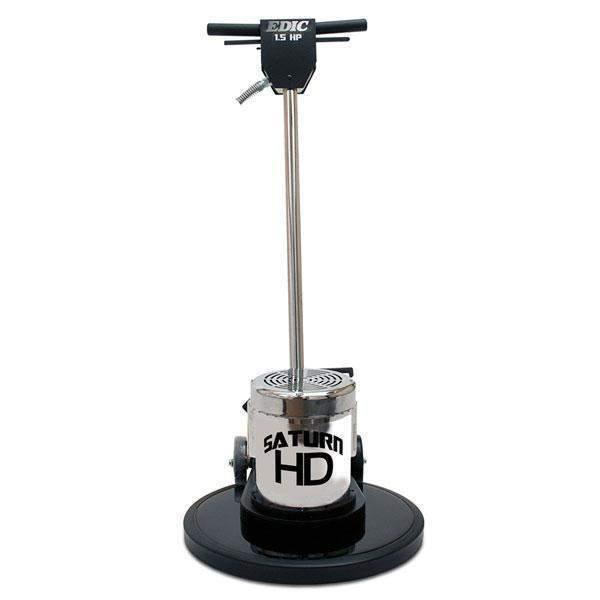

With its all metal construction and steel planetary gear boxes, the Saturn™ Heavy Duty (HD) floor machine can stand up to the heaviest workloads, yet the ride is surprisingly smooth and quiet. The Saturn™ HD is built specifically to handle the stress associated with stripping and scrubbing hard floor surfaces as well as bonnet cleaning and shampooing carpets.
Features:
- All-metal construction assures durability
- All-steel triple planetary gearbox provides heavy duty yet quiet operation
- Dual-trigger negative pressure switch allows operator to run with either hand

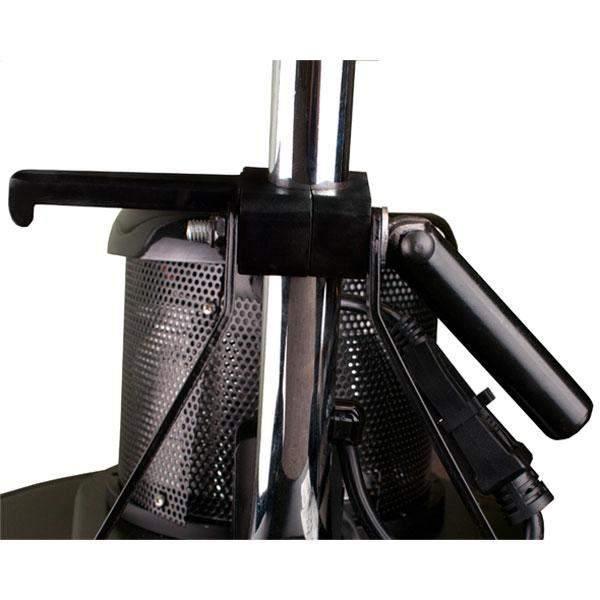

- Exclusive “lockout lever” is designed so operator can safely activate motor with both hands on the grips
- Wide-gripping handle locking mechanism guarantees a tight lock and smooth adjustment
- Non-marking PVC bumper prevents marks on walls and furniture
Specifications
Model
13LS4-BK**
15LS4-SS* or 15LS4-BK**
17LS4-SS* or 17LS4-BK**
20LS4-SS* or 20LS4-BK**Head Size 13″ 15″ 17″ 20″ RPM 172 172 172 172 Motor 1.5 HP TEFC motor 1.5 HP TEFC motor 1.5 HP TEFC motor 1.5 HP TEFC motor Gears Triple planetary steel gears Triple planetary steel gears Triple planetary steel gears Triple planetary steel gears Weight 109 lbs. 111 lbs. 113 lbs. 116 lbs. Brush Cover Stainless steel or powder coated Stainless steel or powder coated Stainless steel or powder coated Stainless steel or powder coated Shipping Weight 126 lbs. 128 lbs. 130 lbs. 133 lbs. Handle Anti-fatigure grips Anti-fatigure grips Anti-fatigure grips Anti-fatigure grips Power Cord 50′ 50′ 50′ 50′ Electrical Draw 13 amps 13 amps 13 amps 13 amps Shipping Dimensions 48″H x 26.5″L x 23″W 48″H x 26.5″L x 23″W 48″H x 26.5″L x 23″W 48″H x 26.5″L x 23″W Warranty 5 year 5 year 5 year 5 year *SS notes stainless steel brush cover •
**BK notes powder coated brush cover
Manuals
Operations Manual – DOWNLOAD
