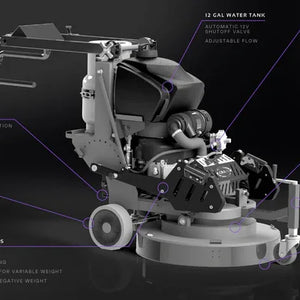

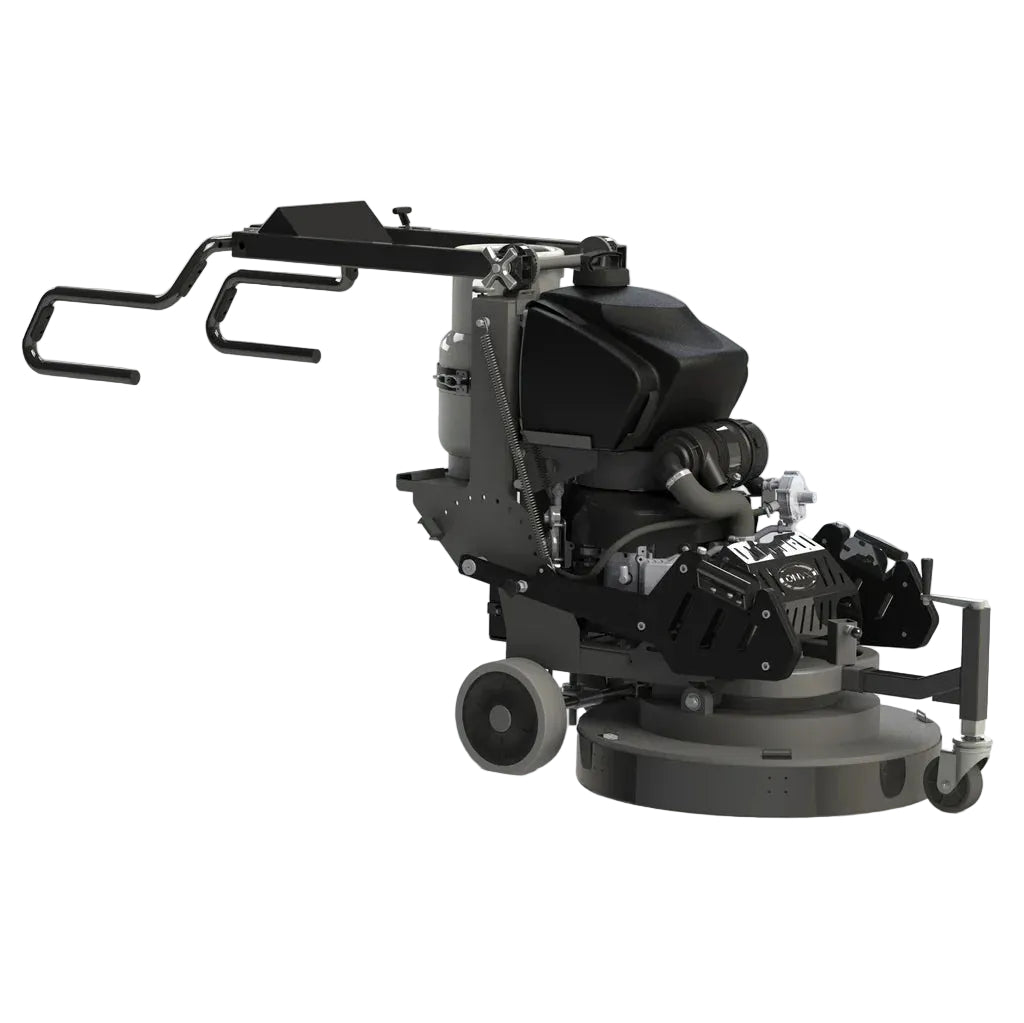

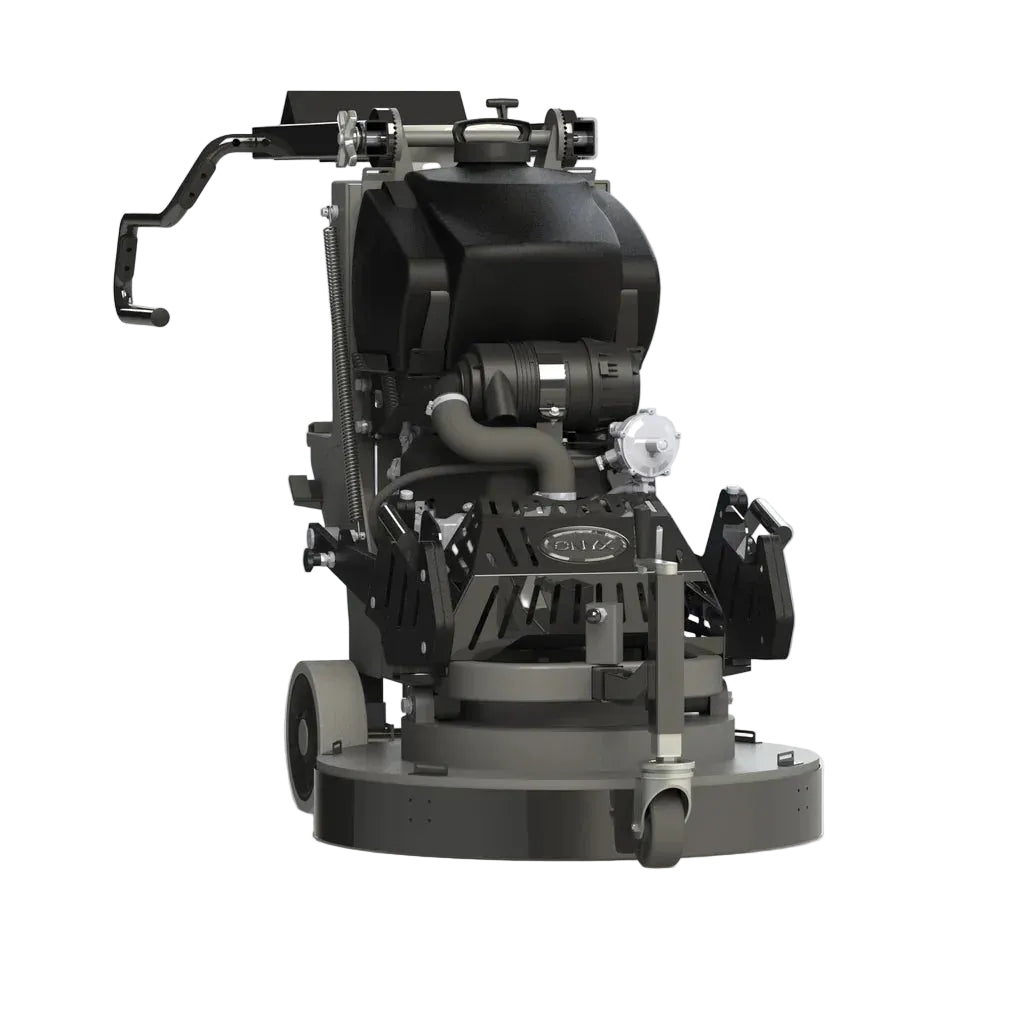

ONYX Z5 Propane Planetary Floor Machine for Grinding & Polishing
The ONYX Z5 30-inch propane planetary floor machine is engineered for high-performance concrete grinding, polishing, and surface preparation. Powered by propane for maximum mobility and efficiency, this commercial floor machine delivers consistent, professional results across a wide range of applications.
Designed with a planetary drive system, the ONYX Z5 ensures smooth operation, easy handling, and uniform coverage. It excels in concrete polishing, terrazzo restoration, stone honing, floor scrubbing, and stripping, making it a versatile solution for contractors and facility maintenance professionals.
Operating at higher speeds than traditional floor grinders, the Z5 increases productivity while reducing downtime. Whether you're performing concrete floor polishing or heavy-duty stripping, this machine delivers powerful, reliable performance on every job.
High-Performance Propane Floor Grinder & Polisher
The ONYX Z5 stands out as a propane floor grinder and polishing machine that combines speed, power, and control. Its propane engine eliminates the limitations of electric machines, allowing for continuous operation in large commercial spaces.
Ideal for:
- Concrete floor grinding and polishing
- Terrazzo and natural stone restoration
- Floor stripping and coating removal
- Industrial and commercial surface preparation
Advanced Planetary Drive for Consistent Results
The belt-driven planetary system is fully sealed for durability and long-term reliability. This advanced design ensures even pressure distribution, delivering consistent polishing and grinding results across the entire floor surface.
The pivoting head maintains full floor contact, helping achieve:
- Uniform finishes
- Reduced operator fatigue
- Improved efficiency on large surfaces

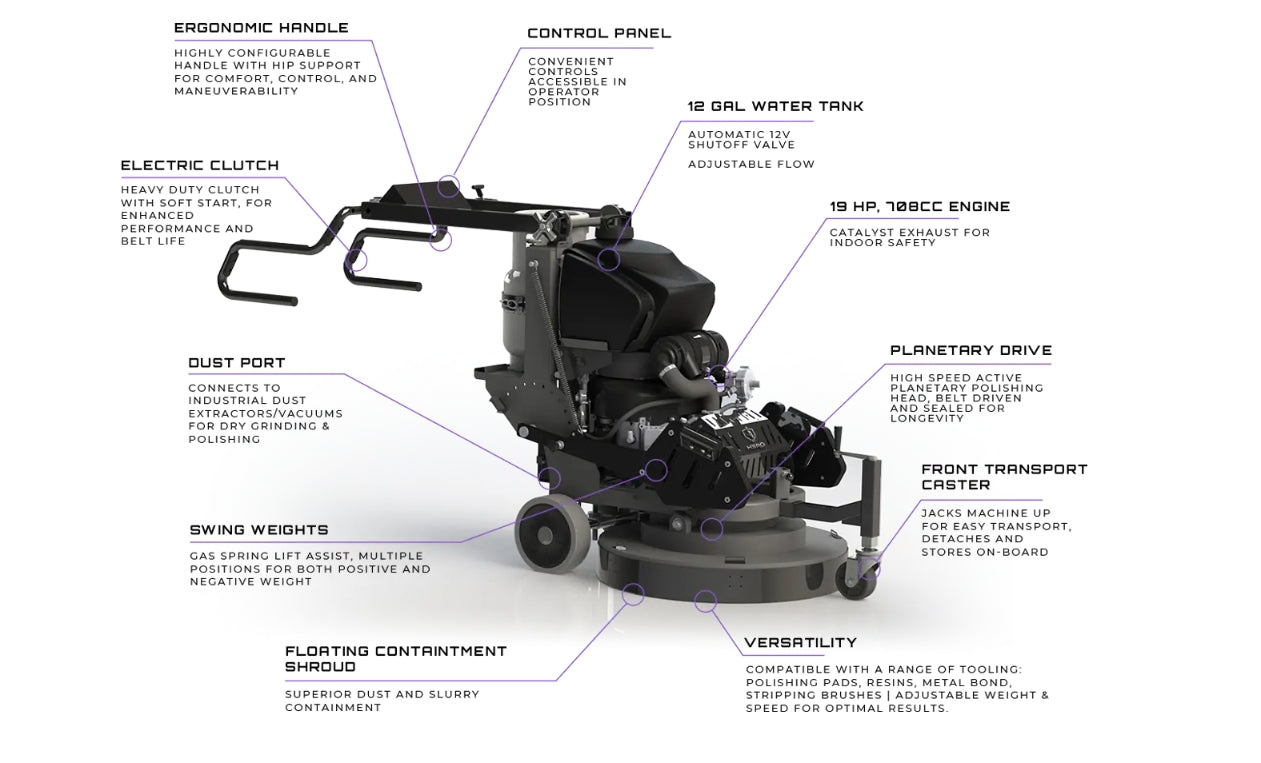

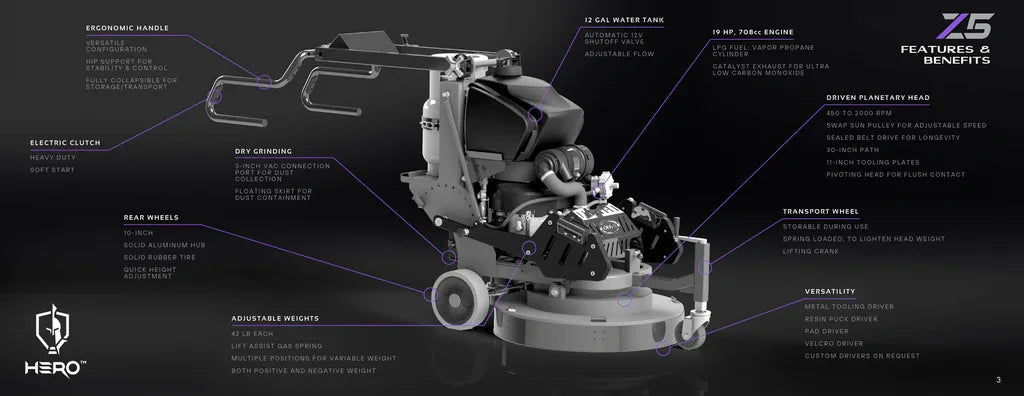

Built for Versatility and Ease of Use
The ONYX Z5 is designed to be lighter and easier to handle than traditional concrete grinders, without sacrificing performance. Its adjustable weight system allows operators to fine-tune grinding pressure and simplifies tooling changes.
Key usability features include:
- Ergonomic handle with hip support for better control
- Easy rock-back design for quick pad changes
- Foldable handle for transport and storage
- Front transport caster for mobility
- Integrated headlight for improved visibility
Wet and Dry Operation with Precision Control
This commercial planetary floor machine supports both wet and dry applications, making it adaptable to different job site requirements.
- Adjustable water feed system for precise flow control
- Dust port for connection to industrial vacuums
- Flexible head skirt to contain dust and prevent splatter
These features make the ONYX Z5 ideal for dust-controlled concrete grinding and polishing environments.
Complete Concrete Polishing System
Pair the ONYX Z5 with the HERO polishing system to achieve predictable, high-quality finishes. From grinding to final polish, this system provides everything needed for efficient and professional floor restoration.
| Product Function | Floor Polishing, Honing, Grinding, Stripping, Deep Cleaning, Rejuvenation |
| Productivity Rate | 30,000 SqFt per hour for deep cleaning/stripping, 4000 SqFt per hour per polishing step |
| Power | LX700 19hp Propane Engine |
| Head Motion | Active (Driven) Triple Planetary |
| Working Width | 30" |
| Pad / Brush Size | 11" x 3 |
| Pad / Brush Rotational Speed | 700-1400 RPM |
| Planetary Ratio | 12 Satellite Rotations : 1 Drum Rotation |
| Head Pressure | 130-330 lbs |
| Weight Kit | 2 x 50 lbs Swing Weights |
| Solution Tank Capacity | 12 Gallon |
| Operation Mode | Walk-Behind Pad Assist |
| Machine Wheels | 10 inch Solid Rubber Tread on Solid Aluminum Hub |
| Sound Level | Less than 87 dBA |
| Run Time | 6 Hours Per 20lb Propane Cylinder |
| Weight | 620 lbs |
| Warranty | 3 Years, 90 days on wear items |
Z5 Data Sheet
Product specification and additional features.
